The SolarLab Simulator

Model the plant before you build it.

Configure a site, test the energy path and receive a transparent preliminary yield estimate.

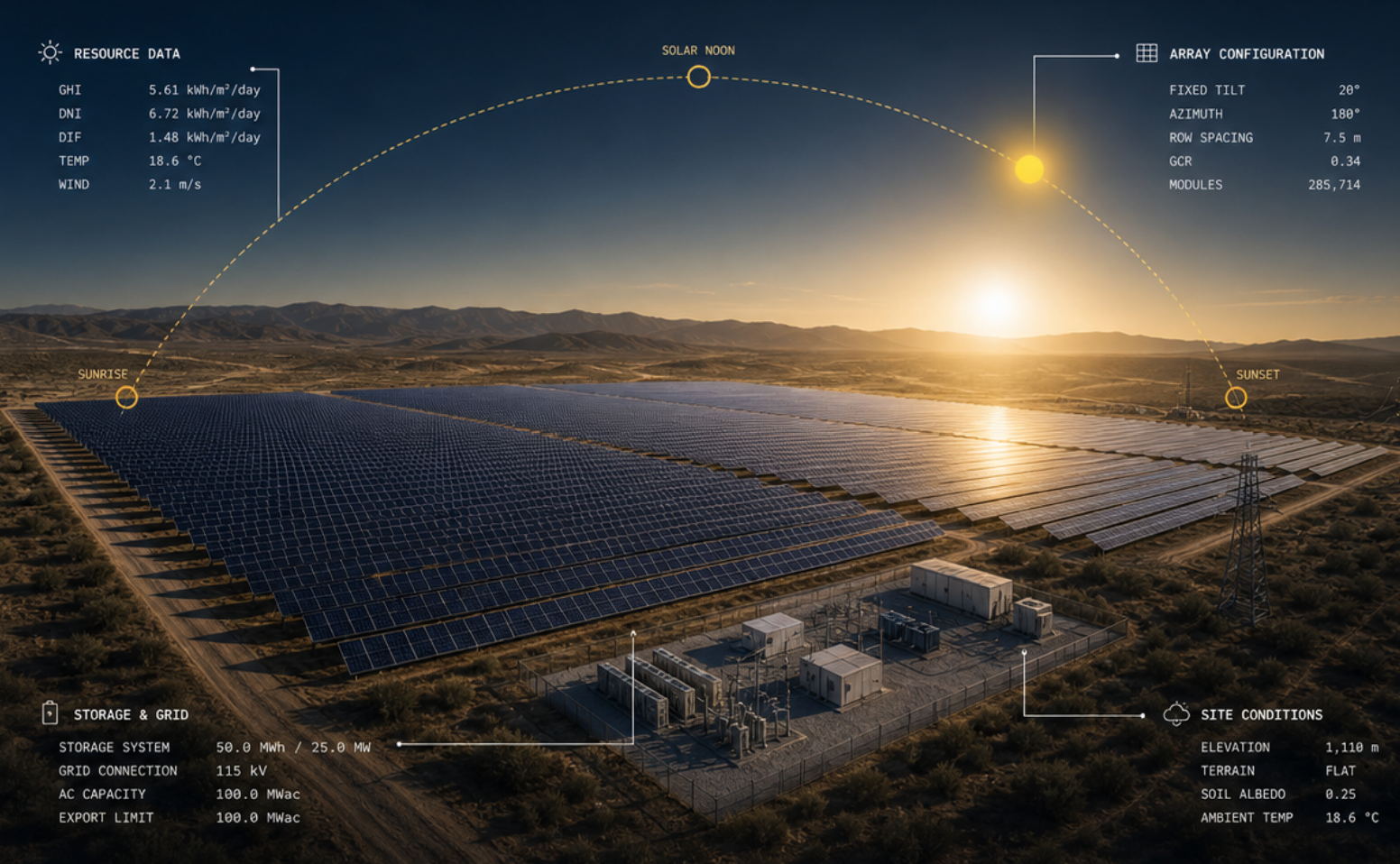

Illustrative SolarLab simulation output showing a utility-scale solar plant with resource, array, storage, grid and site annotations — Preliminary plant overview · illustrative output

Build a scenario

Set the assumptions. Watch the complete solar cycle.

Configure the plant in the collapsible panel, then follow the sun and moon along the same energy path while the model is calculated.

Simulator configuration

Fixed PV

04Advanced engineering assumptions

SolarLab defaults are editable and are compounded sequentially. Clipping is calculated from the hourly profile.

Inverter output capacity (AC)MWac

Power per solar panelWp

Solar panel efficiency%

Ground reflectivity%

Include surrounding terrain

Incidence-angle modifier%

Snow%

Module quality / degradation%

Light-induced degradation%

Mismatch%

DC wiring%

Inverter conversion%

AC and transformer%

Plant auxiliaries%

Plant availability%

Bifacial rear-side uplift%

Floating thermal uplift%

Near shading%

Soiling%

Automated pre-feasibility estimate only. Not a bankable assessment or a replacement for a project-specific PVsyst study.

Scenario 001 Prague, Czech Republic 50 MWp

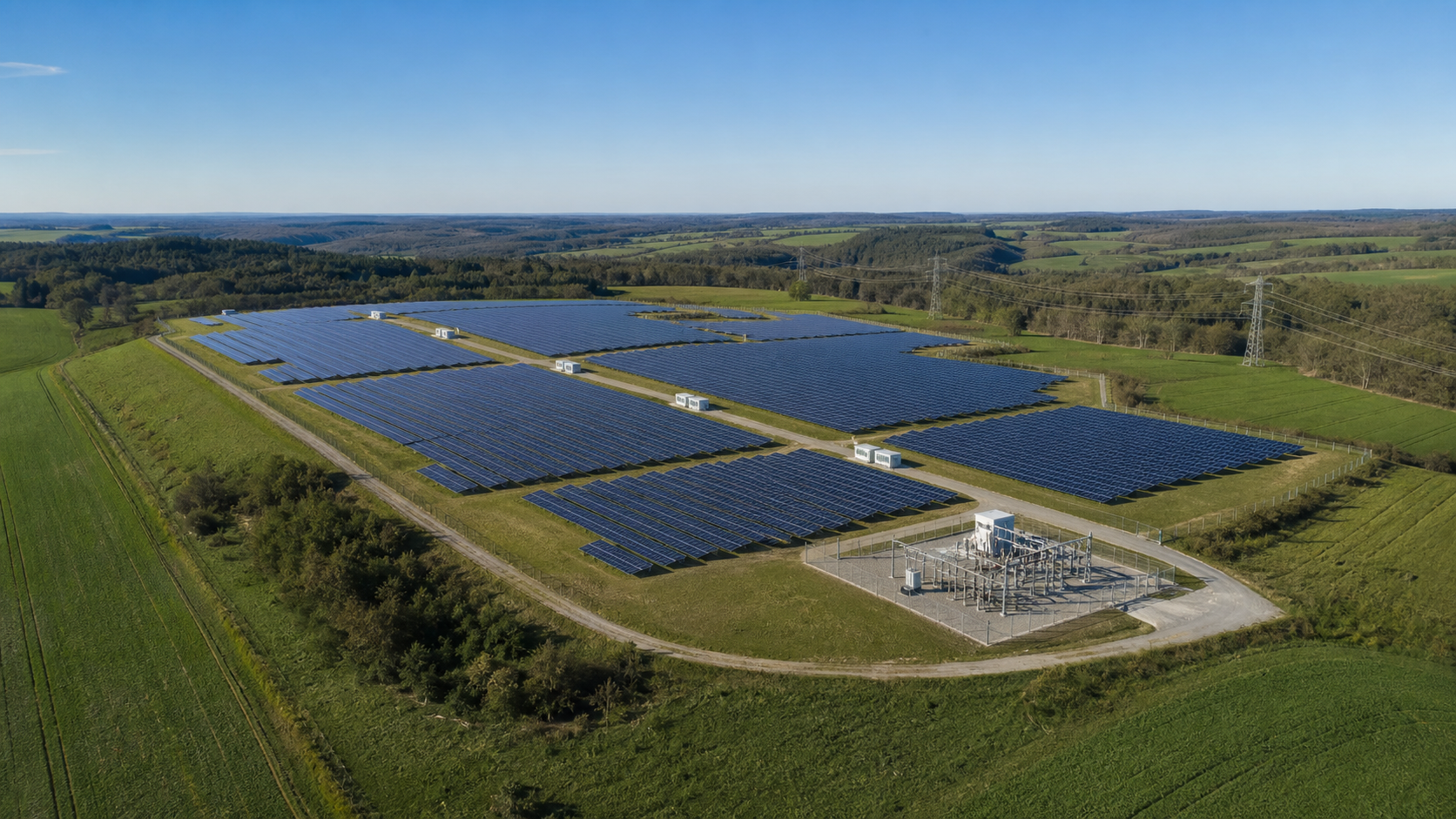

Conceptual aerial visualization of a fixed-tilt solar power plant

Solar array size (DC)50 MWp

Inverter output capacity (AC)45 MWac

Maximum grid export40 MW

DC/AC ratio1.11

Plant typeFixed PVVisual scaleMedium

Transparent by design

A useful first answer, with its limits visible.

The model combines PVGIS 5.3 multi-year resource data with a representative hourly profile, then applies editable SolarLab assumptions in sequence. Storage dispatch follows physical power, energy and state-of-charge constraints.

Detailed horizon and shading geometry, terrain, manufacturer curves, lifetime degradation, grid studies and uncertainty analysis require a project-specific engineering assessment.

Discuss this project
